Live Sessions

Live Sessions is the core real-time monitoring and control interface for Coral. It lets you observe and interact with AI coding agents (Claude and Gemini) as they work in parallel git worktrees — all from a single browser tab.

Each live session represents one agent running in a tmux session. The dashboard provides a browser-based view of the agent's terminal output, activity timeline, tasks, notes, and conversation history, all updating in real time.

Getting started

Start the dashboard

# Dashboard only
coral

# Dashboard + agents for all worktrees in current directory
launch-coral

Open http://localhost:8420 in your browser. The sidebar shows Live Sessions at the top with any running agents grouped by worktree name.

Launch a new session

Click the + New button in the Live Sessions sidebar header. The launch modal offers three types:

AI Agent

Launch a single agent with an optional initial prompt and message board subscription.

  1. Fill in the fields:
    • Agent Name (optional) — A display name like "Auth Feature"
    • Working Directory — The git repo path (click Browse to navigate)
    • Agent Type — Claude or Gemini
    • Flags (optional) — CLI flags like --verbose. Use the shortcut buttons for --chrome and --dangerously-skip-permissions.
    • Prompt (optional) — An initial instruction to send to the agent on launch
  2. Click Launch.

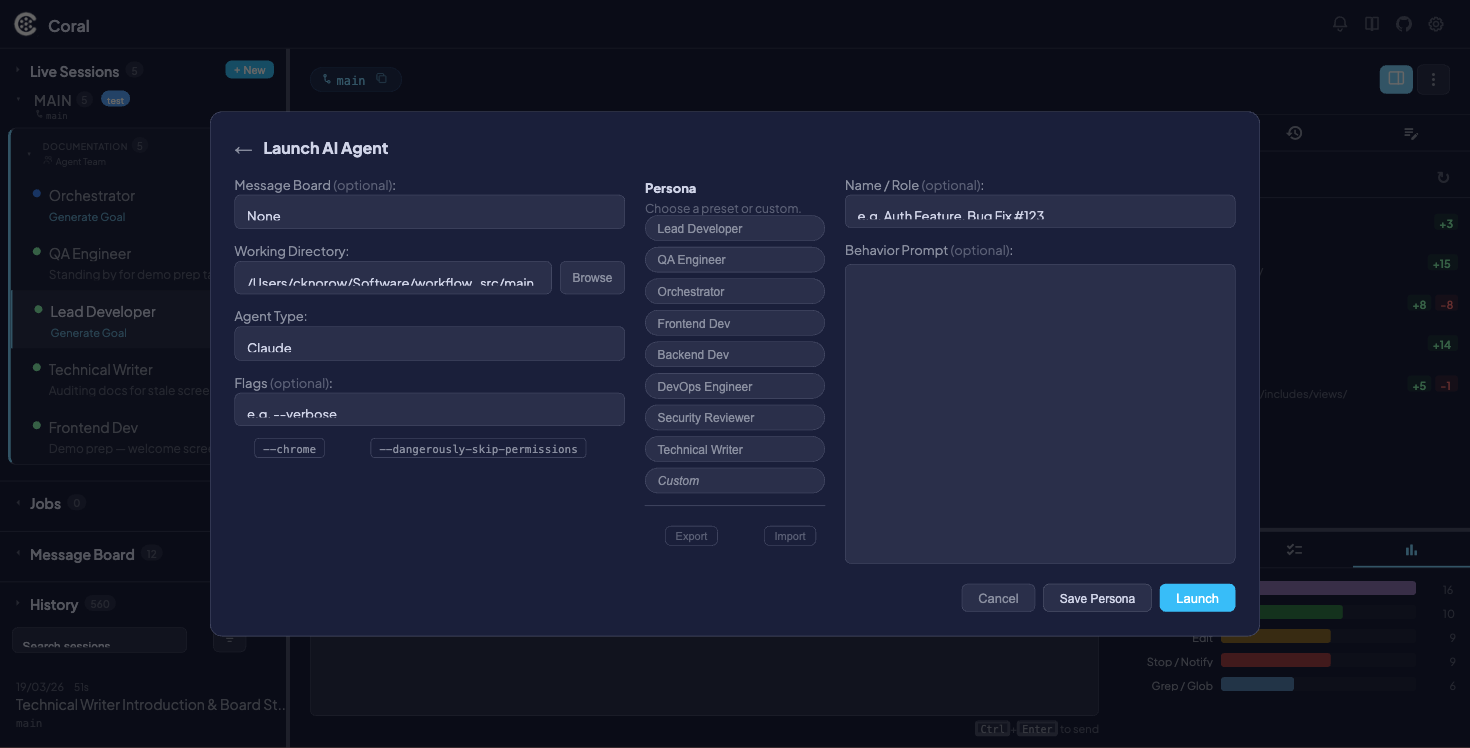

AI Agent launch modal with persona preset selector and configuration fields

Agent Team

Launch multiple agents on a shared message board with per-agent roles and behavior prompts. See Agent Teams & Message Board for the full guide.

Terminal

Launch a plain shell session in a tmux pane — useful for running manual commands alongside your agents.

The new session appears in the sidebar. Click it to select.

!!! tip You can also launch agents from the command line with launch-coral <path-to-worktrees>, which discovers subdirectories and creates one agent per worktree automatically.

Session view

When you select a live session, the main panel shows three areas: the session header, the terminal area, and the command pane.

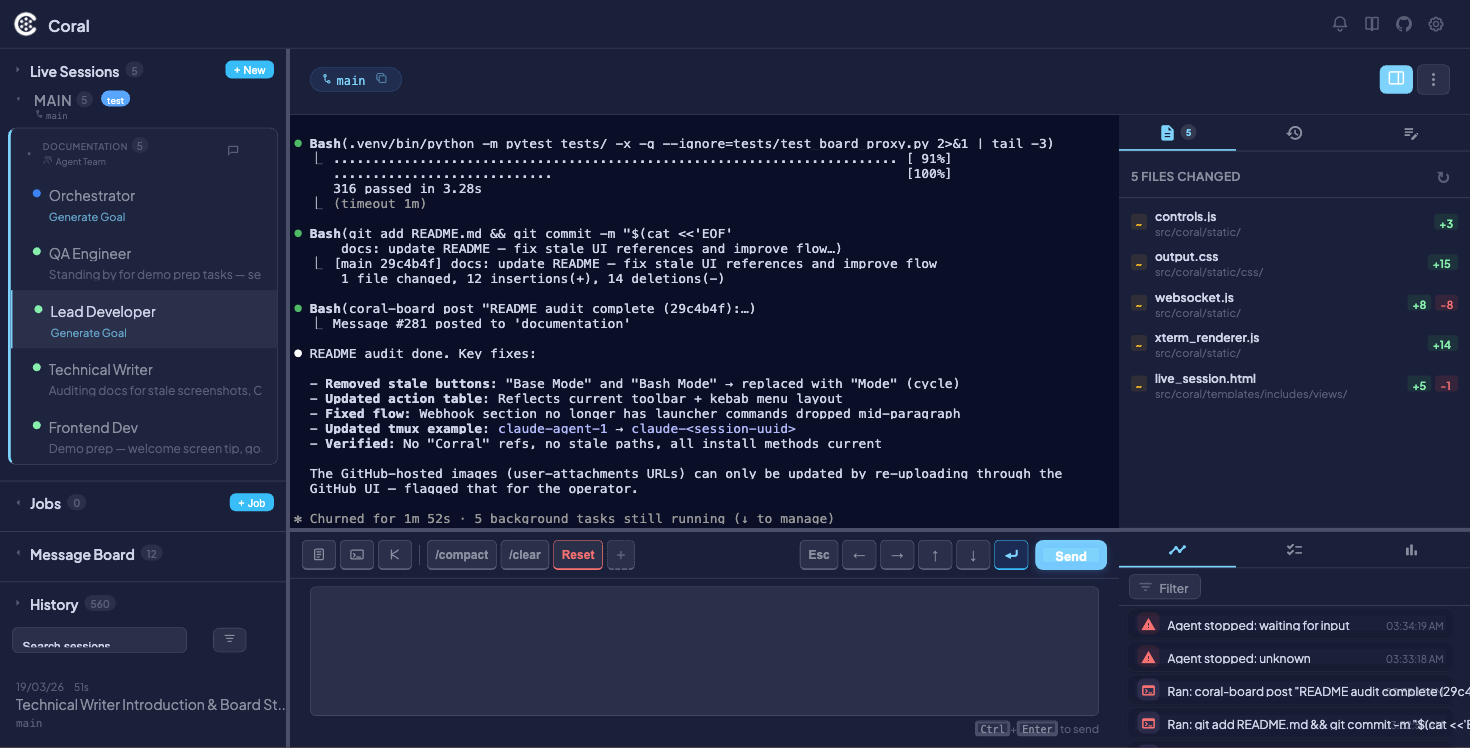

Full session view showing terminal, command pane, and side panel

Session header

The header displays:

  • Status dot — Color-coded: green (active), yellow (waiting for input), gray (stale)
  • Agent type badge — CLAUDE or GEMINI with distinct styling
  • Session name — Display name or worktree folder name
  • Branch — Current git branch with a copy-to-clipboard button
  • Goal — High-level objective parsed from ||PULSE:SUMMARY|| markers
  • Status — Current task parsed from ||PULSE:STATUS|| markers

The header also contains action buttons:

Button Description
Info View session metadata (tmux session name, attach command, working directory, log path, branch, latest commit)
Attach Open a native terminal window attached to the agent's tmux session
Restart Restart the agent in the same working directory (optionally add new flags)
Kill Terminate the tmux session and stop the agent

Waiting for input banner

When the agent needs a response, a yellow banner appears above the terminal:

⏳ Agent is waiting for input

The sidebar also shows a NEEDS INPUT badge on that session.

Terminal area

The terminal area shows the agent's live output. Two rendering modes are available:

  • xterm.js — Full terminal emulation with colors and formatting (default for Claude)
  • Semantic blocks — Parsed output blocks (default for Gemini)

You can change the default renderer per agent type in Settings (gear icon, top right).

!!! info When you select text in the terminal, updates pause automatically to prevent the selection from being lost. A "Updates paused — text selected" badge appears until you deselect.

Command pane

The command pane at the bottom has a resizable toolbar and a text input area.

Toolbar buttons (left to right):

Section Buttons Description
Mode toggles Plan Mode, Accept Edits, Bash Mode Toggle Claude Code modes via Shift+Tab
Macros /compact, /clear, custom macros Send common commands with one click
Add macro + Create a custom macro button with a label and command
Navigation Esc, ↑, ↓, ↵, Send Send navigation keys or submit the typed command

Type any command in the textarea and click Send (or press Enter) to send it to the agent.

!!! tip Your input text is preserved per-session — switch between sessions without losing what you were typing.

Side panel

The right-side panel has four tabs: Activity, Tasks, Notes, and History. The panel is resizable by dragging its left edge.

Activity

The Activity tab shows a real-time event timeline of everything the agent is doing. Each event has an icon, description, and timestamp.

Event types include:

  • Read, Write, Edit — File operations
  • Bash — Shell commands
  • Grep, Glob — Search operations
  • Web — Web fetches
  • Tasks, Subagents — Task and sub-agent activity
  • Status, Goal, Confidence — PULSE protocol events
  • Stop/Notify — Agent pause events

Use the Filter dropdown to toggle event categories on or off. An activity chart at the bottom shows the event distribution over time.

Tasks

Create and manage task checklists for each session. Tasks are drag-reorderable and persist across Coral restarts.

  • Click to add a new task
  • Check the box to mark complete
  • Drag to reorder

Notes

Write markdown notes about each session. Click the notes area to edit, and the content renders as formatted markdown when you click away.

History

The History tab shows the live JSONL conversation log — the full chat transcript between you and the agent. It displays:

  • User messages — Your prompts and commands
  • Assistant messages — Agent responses
  • Tool cards — Expandable cards for Bash commands, Edit diffs, Read file contents, and other tool uses

The transcript polls for updates every second while the tab is active.

Session management

Renaming a session

Right-click a session in the sidebar to open the context menu and set a custom display name.

Restarting a session

Click Restart in the session header. A modal appears where you can optionally add new CLI flags. The agent restarts in the same working directory with a new session UUID.

Resuming a historical session

You can pick up where a previous session left off:

  1. Find the completed session in the History section of the sidebar.
  2. Click the Resume button in the historical session's header.
  3. The Resume modal shows a list of currently live agents. Select which agent should continue the session.
  4. Coral restarts the selected agent with --resume, loading the full conversation context from the previous session.

!!! warning Resume is supported for Claude agents only. Gemini does not support session resume.

!!! info If Coral restarts, resumed sessions are automatically re-resumed via resume_persistent_sessions(). The resume linkage is stored in the database.

Session info modal

Click Info to view full session metadata:

Field Description
Agent Name Display name of the session
Agent Type claude or gemini
Tmux Session Full tmux session name (e.g., claude-<uuid>)
Attach Command tmux attach -t <session> with a Copy button
Working Directory Filesystem path for the agent's repo
Log Path Path to the agent's log file
Pane Title tmux pane title
Branch Current git branch
Latest Commit Most recent commit hash and message
Prompt The initial prompt sent to the agent (if any)
Message Board Clickable link to the agent's message board (if subscribed)

How it works

  • Each session maps to one tmux session running one agent in one working directory
  • Sessions are identified by UUIDs (tmux session name: {agent_type}-{uuid})
  • The dashboard auto-discovers sessions by querying tmux for panes matching the UUID naming convention
  • WebSocket /ws/coral provides coral-wide session list updates every 3 seconds
  • WebSocket /ws/terminal/{name} streams raw terminal content at 0.5-second intervals
  • Sessions persist across Coral restarts — the live_sessions database table tracks registered sessions and relaunches them on startup
  • Session prompts and board subscriptions are persisted, so agents are re-sent their prompt and re-subscribed to their board on restart

Configuration

Setting Method Default Description
Dashboard port CORAL_PORT env var or --port 8420 Web dashboard port
Dashboard host --host flag 0.0.0.0 Bind address
Default renderer Settings modal xterm (Claude), blocks (Gemini) Terminal rendering mode per agent type
Default agent type Settings modal claude Default for new sessions
Default working directory Settings modal Coral root Pre-filled path in launch modal
Fit pane width Settings modal off Auto-resize tmux pane to match browser width
Custom macros Toolbar + button /compact, /clear, Reset Configurable command buttons
Log directory TMPDIR env var /tmp Agent log file location

Database location: ~/.coral/sessions.db (SQLite, WAL mode)
